ProTracker/OctaMED Arpeggio creator

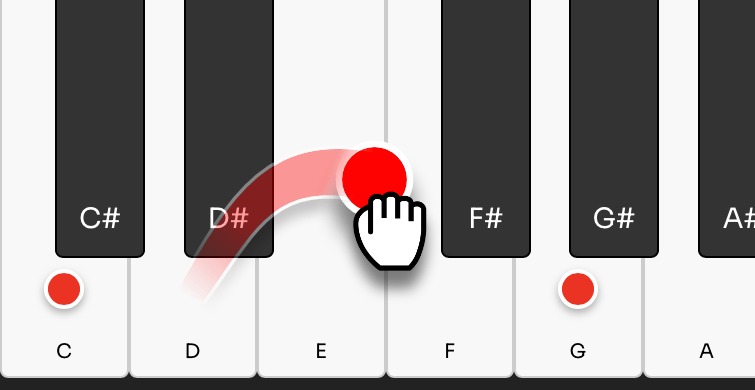

An tool to create OctaMED/ProTracker arpeggio commands 00xx with real-time audio preview. Show instructions.
Chord Presets
Uses leftmost finger as root note. Automatically adjusts octave if needed.
Arpeggio Cheat Sheet (Command 00)
Applicable to ProTracker and OctaMED. More on the 00 command can be found in the OctaMED Soundstudio manual.
| Chord / Effect | Command Code + Args | Notes Example |
|---|---|---|
| Major triad | 0047 | C – E – G |
| Minor triad | 0037 | C – D# – G |
| Diminished triad | 0036 | C – D# – F# |
| Augmented triad | 0048 | C – E – G# |
| Sus4 chord | 0057 | C – F – G |
| Sus2 chord | 0027 | C – D – G |
| 7th chord (implied) | 004A | C – E – Bb |
| 5th power chord | 007C | C – G – C |
| Fast trill | 0012 | C – C# – D |
